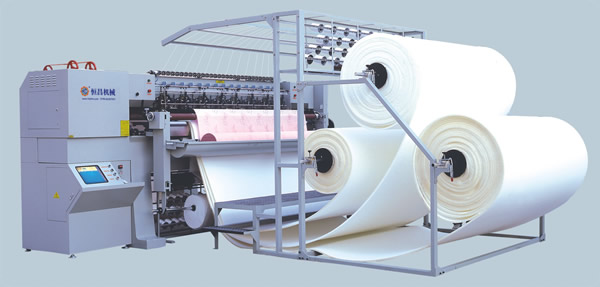

HC-94-3JA High speed computerized multi-needle shuttle less quilting machine

HC-94-3JA High speed computerized multi-needle shuttle less quilting machine

SPECIAL FUNCTION:

·Function of automatic stop on breaking of thread and needle raising.
·Bottom thread cutting and fabric rolling are the fastest in the world with production rate of 20% to 50% higher than any other quilting machines in the nation.
·Bottom stitch uses common mixed cotton thread for all patterns.
·Very little deformation when quilt on between thick and thin fabric.
·Uses high speed aero dynamic bottom thread cutting machine architecture, and therefore, can produce an uniform and threadless edge.
·Both X and Y axes are driven by high power Panasonic servo motors that are capable of quilting fabric materials at 50mm in thickness.
·Extended horizontal movement (moving distance of 450mm), can produce super large patterns.
·Spacious look with the single unit design.
·Nation's first built multi independent quilting machine.
·(This machine is also capable of quilting single independent, all round 360 degree and 180 degree patterns.)

Technical Specification:

Size (length*width*height)  4800 x 1220 x 2000(mm)
 Weight  3500kg
 Quilt width  2450mm
 RPM  750-950 RPM
 Production speed  65-180 m/h
 Needle type  160/23  180/24
 Needle arrangement   (50.8, 76.2, 127) (76.2, 76.2, 152.4)
 Max. horizontal movement  450mm
 Needle space  25.4mm
 Voltage  380V 50Hz  220V 60Hz
 Max. Stitch size  2-7 mm
 Power  4.5 KW
 Quilting thickness  ≤50mm

Feature Icon:



Applications:

Mattress panel, pads, bedspreads, bedding, comforters and so on.

INSTALLED CHART     QUILT PATTERN
